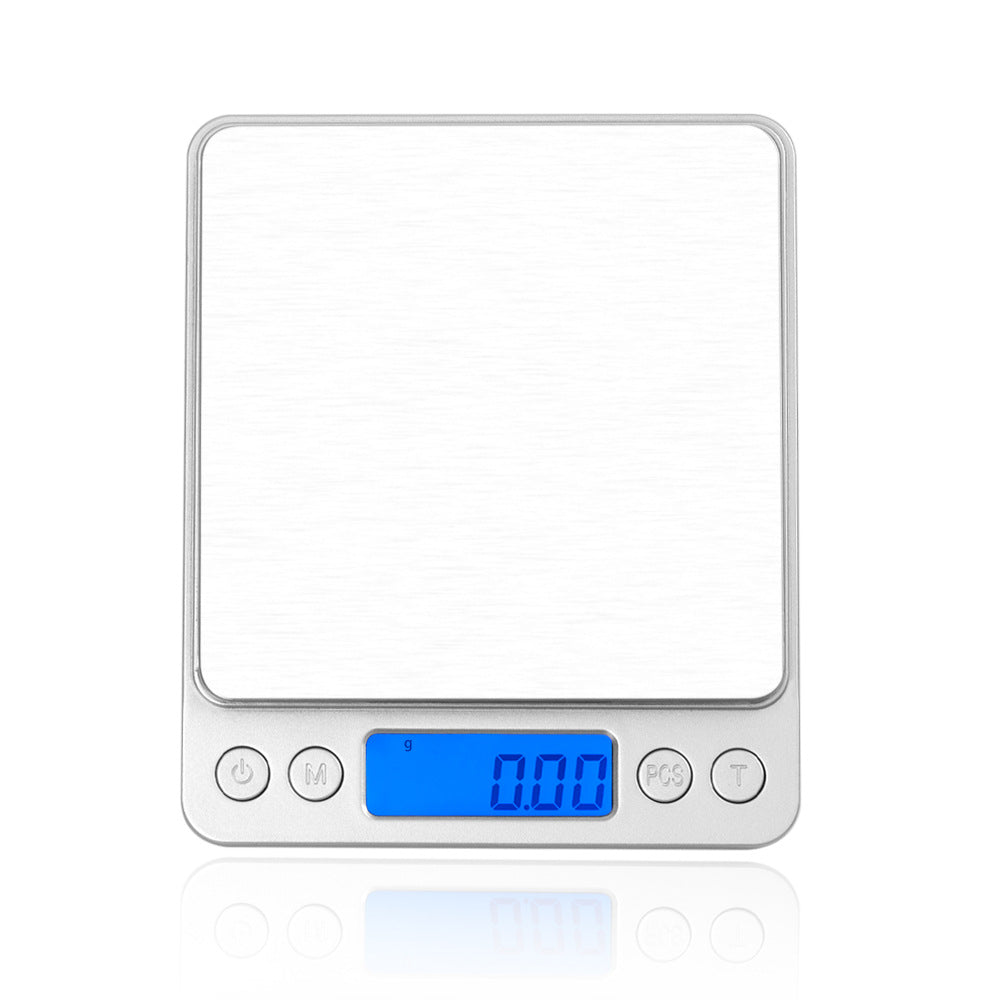

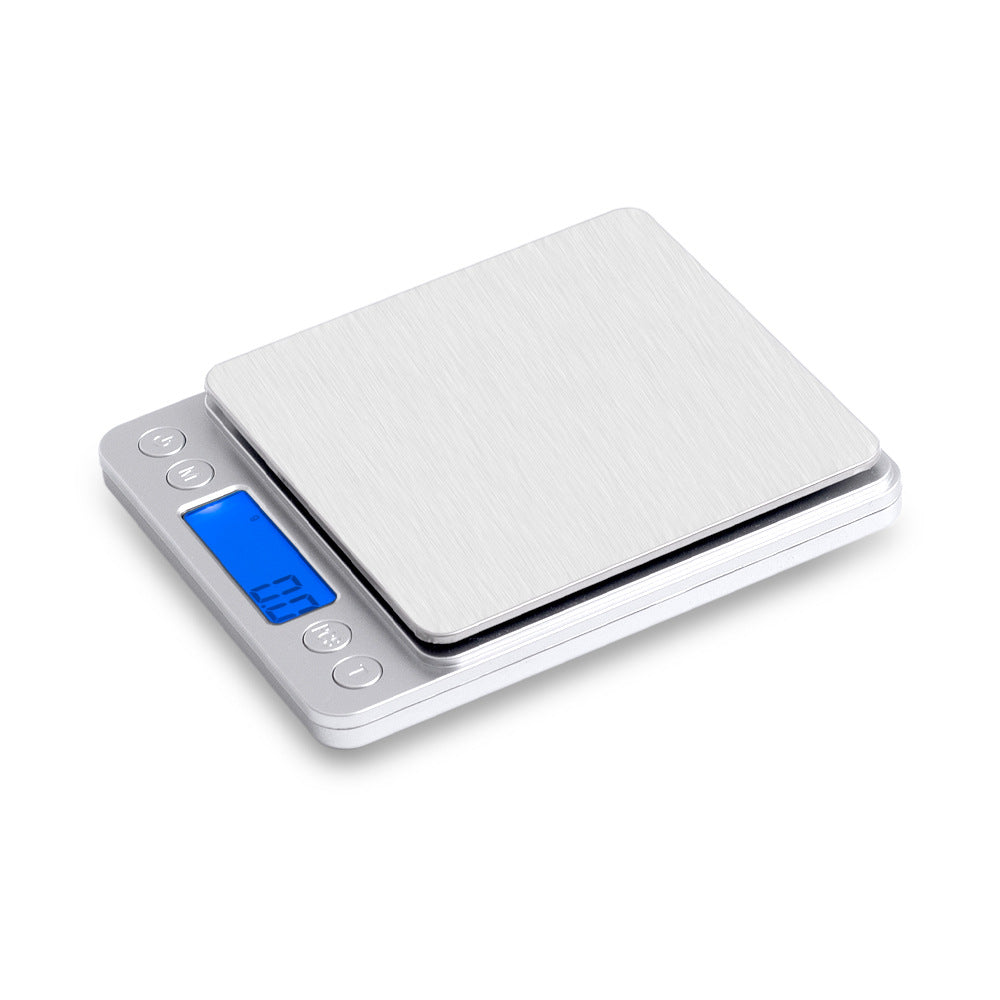

KDG DIY Jewelry Electronic scale 0.01g gram scale 0.01g jewelry scale pocket multi use scale manufacturer

1. Scale size: 127mm*106mm*19 mm (L x W x H)
2. Large brushed stainless steel weighing pan: 100mm*100mm (L x W)
3. Blue backlight, large screen display: 42mm*14mm (L x W)
4. Comes with PCS single weight counting function 25, 50, 60, 75, 100
5.6 Gear unit conversion G, OZ, OZT, DWT, ct, gn

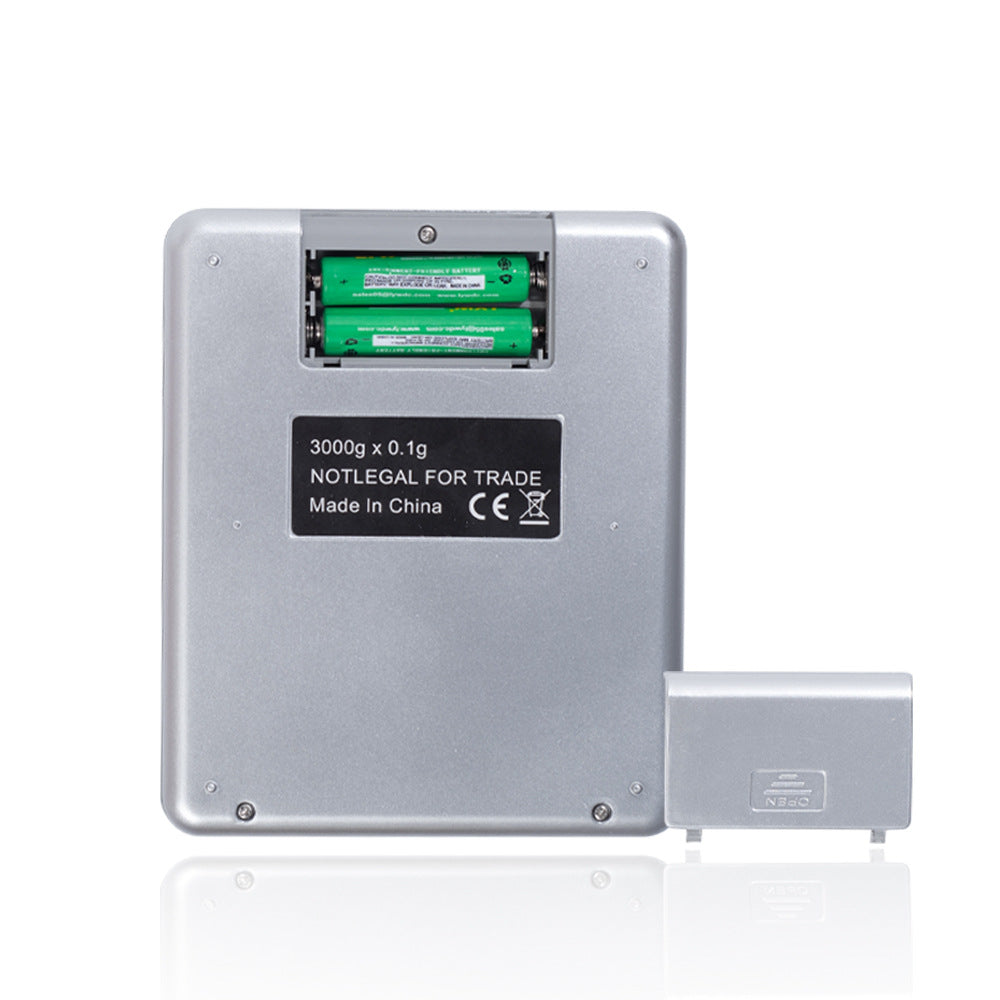

6. Use 2 * AAA AAA batteries
7. Power-on self-check function, automatic zero tracking
8.30-60 seconds automatic shutdown function
9. Zero-setting, full-scale zero-clearing function

How to use the counting function of the scale:
1. You put the items on the weighing platform first, there are four options: 25, 50, 75, 100.
For example, you first put 25 coins of the same specification on the weighing platform
2. Then press and hold the pcs button for 2 seconds until the number 100 is displayed
3. Then press the MODE button and it will show 25, 50 for two, 75 for three, and 100 for four, but we started with 25 coins, just click it.
4. Finally, press the pcs button
This completes the entire setting process. You grab a handful of coins and there will be numbers displayed.

 Troubleshooting
  The main reasons for inaccurate weighing and malfunction are generally low battery, incorrect calibration, overload or not operating on a stable surface.
  [DISPLAY] means removing errors
 [OUT2] means re-calibration
  [EEEE] Indicates overweight, part of the overweight items should be taken away immediately.
  [UN2T] Means to put the scale on a more stable platform for weighing
The inspection and proofreading will also be done at the time of shipment, please do not proofread by yourself after the buyer receives the goods! Can be used directly! If you have any questions, please feel free to contact customer service staff!

Accessories: 2 batteries

Instructions
Place the scale on a stable surface
1. Press the "N" key and wait for 5 seconds to display 0.0;
2. Place the heavy object on the surface of the pallet, which is the weight of the heavy object;
3. Use the M key to change the measurement unit, G/OZ/GN/CT/DWT/OZT
4. Press TARE to forcibly return to zero.


Correction method
Press the M button for 3 seconds, the display shows CAL to let go, and then press the M button to display 100 grams. At this time, place a 100 grams weight on the tray, and after 3 seconds, it will display PASS, and the calibration is complete. (Please use this function when the weighing is not punctual due to excessive temperature difference or other reasons)


Precautions
1. Gently remove the protective cover of the tray, and place the scale body in a stable, vibration-free, and wind-free environment.
2. Do not place any object larger than the rated weight on the tray, which may damage the sensor. Do not impact the weighing tray when placing the object, and handle it with care. It can withstand 3000g pressure without damage).
3. When the display shows the battery symbol, please replace the battery immediately;
